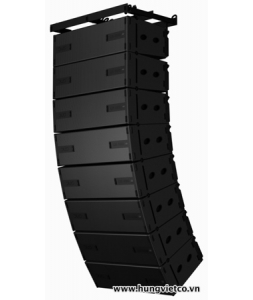

Design: 3-way active system

Frequency range: 55Hz-1.2KHz / 200Hz-4.5kHz / 600Hz-18kHz (LF /MF/ HF)

Power handling (nominal): 800W / 240W / 200W (LF /MF/ HF)

SPL  4V / 1 m: 98dB / 102dB / 112dB (LF /MF /  HF)

Max. SPL: 130dB / 131.8dB /141dB (LF / MF / HF)

Components:  2 x 12" low drivers, 6 x 4" mid-drivers, 2 x 1.4"Exit /3"Voice coil

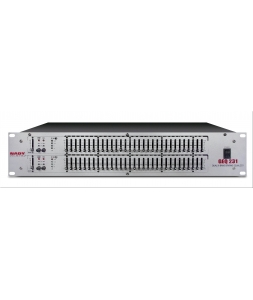

• 2-channel
• Double rack space
• 31 1/3rd octave bands each channel
• Balanced XLR and ¼” TRS input/output connectors
• Low-cut filter at 40Hz, 12dB/octave switchable, with status LED
• Band range: +/- 12dB gain

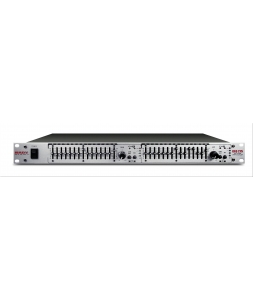

• 2-channel
• Single rack space
• 15 2/3rd octave bands each channel
• Balanced XLR and ¼” TRS input/output connectors
• Band range: +/- 12dB gain
