Line Array QX-12 - 3 way system
Design | 3-way active system |
Frequency range LF(-10dB/±3dB) MF(-10dB/±3dB) HF(-10dB/±3dB) |
55-1200Hz/70-900Hz 200-4500Hz/280-4000Hz 600-18kHz/800-17kHz |
Coverage angles (nominal) | 120°x 10°HT (hor. x vert.) |
Power LF(AES/Peak Power) MF(AES/Peak Power) HF(AES/Peak Power) |
400w+400w/1600w+1600w 240w/960w 200w/800w |
Sensitivity LF(1w/1m /Max SPL) MF(AES/Peak Power) HF(AES/Peak Power) |
98dB+98dB /130dB+130dB 102dB/131.8dB 112dB/141dB |
Components
|
2x12"mid-low drivers 6x4"middle drivers 2x1.4"Exit /3"Voice coil |
Corssover LF MF HF |
60Hz/-24dB/oct 400Hz/-24dB/oct 1000Hz/-24dB/oct |
Impedance | 8+8Ω/8Ω/16Ω LF/MF/HF |
Connectors | 2 x Neutrik NL8 ±1LF/±2LF/±3MF/±4HF |
Enclosure | Trapezoidal enclosure with extra cluster |
angles out of 15mm multiplex with highly | |
resistant structured paint in black, | |
ball proof steel grille with exchangeable, | |
acoustic foam | |
Flyware | 3 flying points |
Dimensions (W x H x D) | 1069 x 555 x 290 mm |
Weight (kg) | 60Kg |

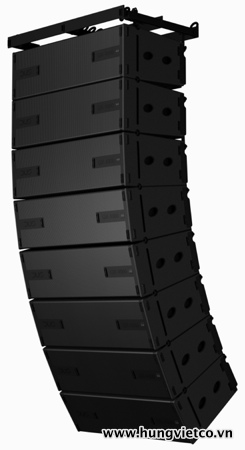

The QX-12 is an ultra compact three-way full range line array module,designed for a wide range of venues where high fidelity sound and outstanding intelligibility are required.
The systems are designed to be used in multiples with a minimal configuration of 2. Up to 16 units can be configured in one array to achieve extreme high levels needed for larger venues. An optional DSW2000H can be added for increased low frequency response.
The integrated rigging system allows quick and easy flying or ground stacking. Arrays may be built straight or curved in various angular to obtain the desired vertical coverage. The fact that the QX-12 is ultra compact and light reduces manpower and eases transport. When coupled with DSW2000H the QX-12 gives audio companies a flexible plug and play system for a wide range of applications from the smallest venue to a concert-level sound.


Equalizer Nady System Inc. USA GEQ-231
mota
- 2-channel
- Double rack space
- 31 1/3rd octave bands each channel
- Balanced XLR and ¼” TRS input/output connectors
- Low-cut filter at 40Hz, 12dB/octave switchable, with status LED
- Band range: +/- 12dB gain


Equalizer Nady System Inc. USA GEQ-215
mota
- 2-channel
- Single rack space
- 15 2/3rd octave bands each channel
- Balanced XLR and ¼” TRS input/output connectors
- Band range: +/- 12dB gain
