Loa Full-Range Dus Audio AUT12


  • Thông số kỹ thuật
  • Đặc điểm - ứng dụng
Design 2-way passive system
Frequency range ±10 dB 60Hz-18KHz
Frequency range ±3 dB 68Hz-17.5KHz
Coverage angles (nominal) 90°x 50°HT (hor. x vert.)
Directivity index (DI) 12 (+1.5/-2) 300Hz - 12kHz
Power handling (nominal) 350W
SPL 2.83 V / 1 m 97dB
Max. SPL 128.5dB
Components 12"low-mid chassis
  1"high frequency driver with 44 mm
  Titanium diaphragm on a rotatable horn
Corssover 1.75KHz -12 dB / octave, automatic resetable driver protection, passive allpass filter to optimise phase esonse and time alignment
Impedance 8Ω
Connectors 2x Speakeron NL4 ±1

Enclosure

  Trapezoidal enclosure with extra cluster
  angles out of 15 mm multiplex with highly
  resistant structured paint in black,
  ball proof steel grille with exchangeable,
  acoustic foam
Flyware 14xM8 flying points
Dimensions (W x H x D) 360 x 380 x 615mm
Weight (kg) N.W:22.5     G.W:25.3
• 1 x 12 inch 2-way full range system
• 128.5dB Max SPL output
• 90 x 50 Constant directivity dispersion angle
• Wear resistant steel grill and acoustic transparent form
• 8Ω component system
• Applications : Karaoke, Bar, Conference



DUS AUDIO is a professional live sound reinforcement system manufacturer with rich production experiences of many years . With the development of KTV market in Asia , the market demand is growing. So we special to design a series products of AUT on market environment request.


AUT-12 design is difference from the common PA loudspeaker. It requires both the monitor effects (ie clearly hear the singer himself, singing easy), and loudspeaker features.So that the singer can hear their own voice clearly with relaxed and the audience can enjoy the pleasant music-filled with tireless and comfortable under a long time hearing. Considering the long time to use the KTV , our cabinet was designed with the years of DUS touring experience to improve the durability and stability of the cabinet. So that the box can withstand the high power of the work, and does not produce low resonance and standing waves in a long time work. In addition, we use smooth cabinet structure design also reduces visual fatigue of peoples , giving a comfortable feel and beautiful appearance.


DUS AUDIO is difference from other speaker manufacturer , we integrate first-class designer to design loudspeaker and develop horn, which give our loudspeaker stronger performance. More importantly , general speaker manufacturer usually use the comprehensive element which buy from common market for loudspeakers development .In order to achieve a perfect frequency response curve, it will cause the crossover network is too complex that will increase pole value and inductance as well as the state of horn work will disturbed and affect the phase. However , we use a outstanding element design which greatly reduce the inductance and capacitance, also greatly reducing the phase difference, maintaining the original music rich overtones, so singers singing become more coherent, relaxed, natural, and moving.


AUT-12 dependingon the KTV site environment, offers a variety of mounting solutions to facilitate multiple use of customers, each AUT-12 external speakers are supporting 14 M8 (mm) hanging points.



Sản phẩm cùng loại

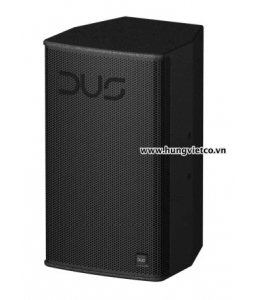

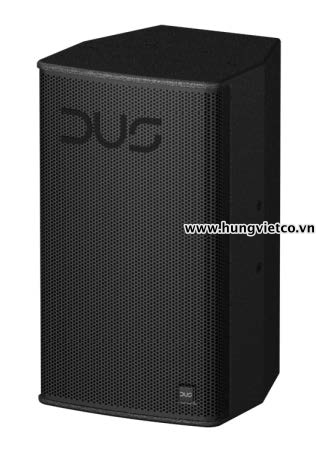

Loa Full-Range Dus Audio AUT10

Loa Full-Range Dus Audio AUT10

mota



Power handling: 250W

Design 2-way passive system

Frequency range: 50Hz -18kHz

SPL  4V / 1 m: 98 dB

Max. SPL: 125 dB

Components:  1 x15" low-mid chassis, 1.5" HF

Impedance: 8 Ω

Xem thêm

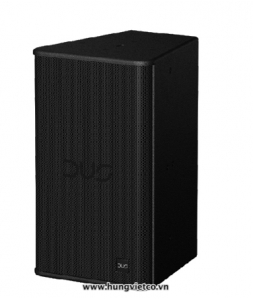

Loa Full-Range Dus Audio PA12

Loa Full-Range Dus Audio PA12

mota



Power handling: 350W

Design 2-way passive system

Frequency range: 50Hz-18kHz

SPL  4V / 1 m: 97dB

Max. SPL: 128 dB

Components:  1 x12" low-mid chassis, 1" HF

Impedance: 8 Ω

Xem thêm
Loa Full-Range Dus Audio PA10

Loa Full-Range Dus Audio PA10

mota



Power handling: 350W

Design 2-way passive system

Frequency range: 55Hz -18kHz

SPL  4V / 1 m: 97dB

Max. SPL: 123dB

Components:  1 x12" low-mid chassis, 1" HF

Impedance: 8Ω

Xem thêm

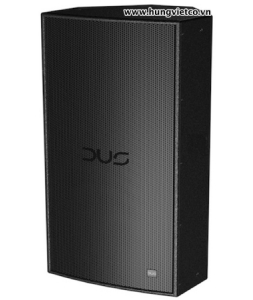

Loa Full-Range Dus Audio X-10
