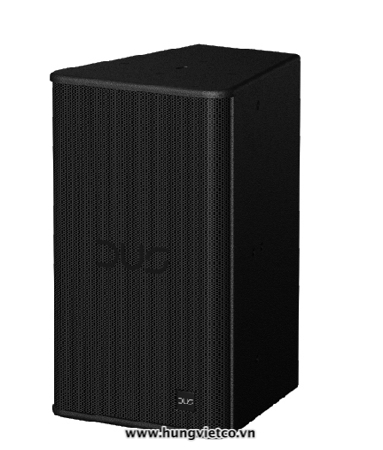

Loa Full-Range Dus Audio PA10
| Design | 2-way passive system |
| Frequency range ±10 dB | 60Hz-18kHz |
| Frequency range ±3 dB | 65Hz-17kHz |
| Coverage angles (nominal) | 80°x 50°HT (hor. x vert.) |
| Directivity index (DI) | 12 (+2 / -3) 500Hz-14kHz |
| Power handling (nominal) | 200 W |
| SPL 2.83 V / 1 m | 96 dB |
| Max. SPL | 125dB (SPL peak / 1 m) |
| Components | 10"low-mid chassis |
| 1"high frequency driver with 44 mm | |
| Titanium diaphragm on a rotatable horn | |
| Corssover | 1.8 kHz 18 dB / octave, automatic resetable driver protection, passive allpass filter to optimise phase esonse and time alignment |
| Impedance | 8Ω |
| Connectors | 2x Nl4 Speakon ±1 |
Enclosure
| Trapezoidal enclosure with extra cluster | |
| angles out of 15 mm multiplex with highly | |
| resistant structured paint in black, | |
| 2 ergonomic butterfly handles, | |
| ball proof steel grille with exchangeable, | |
| acoustic foam | |
| Flyware | 17 flying points |
| Dimensions (W x H x D) | 327 x 530 x 385 mm |
| Weight(kg) | N.W:17.5kg G.W:20.5kg |
• 10" ultra low distortion woofer
• High output driver with titanium nitride coated dome
• High SPL
• Excellent transient characteristics
• Install easy and convenient
The PA10 is a versatile full range two-way loudspeaker system that features an ultra low distortion 10" woofer and a 1.75" compression driver coupled to a 80°x50° rotatable elliptical waveguide.
The PA10 incorporates a multisession enclosures fitted with M8 threaded points for use with an optional U-bracket and includes an integral top hat.
Loa Full-Range Dus Audio AUT12
mota
Power handling: 350W
Design 2-way passive system
Frequency range: 60Hz -18kHz
SPL 2.83V / 1 m: 97 dB
Max. SPL: 128.5 dB
Components: 1 x 12" low-mid chassis, 1" HF
Impedance: 8 Ω
Xem thêm
Loa Full-Range Dus Audio AUT10
mota
Power handling: 250W
Design 2-way passive system
Frequency range: 50Hz -18kHz
SPL 4V / 1 m: 98 dB
Max. SPL: 125 dB
Components: 1 x15" low-mid chassis, 1.5" HF
Impedance: 8 Ω
Xem thêm
Loa Full-Range Dus Audio PA12
mota
Power handling: 350W
Design 2-way passive system
Frequency range: 50Hz-18kHz
SPL 4V / 1 m: 97dB
Max. SPL: 128 dB
Components: 1 x12" low-mid chassis, 1" HF
Impedance: 8 Ω
Xem thêm
Loa Full-Range Dus Audio X-10
mota
Power handling: 150/300W
Design 2-way passive system
Frequency range: 50Hz -18kHz
SPL 4V / 1 m: 95dB
Max. SPL: 123 dB
Components: 1 x 10" low-mid chassis, 1" HF
Impedance: 8Ω
Xem thêm
